| Product Name |
HCG850 Gold |
| Model Name |
HCG850 Gold |
| Type |
ATX 12V 2.4 |
| Modular |

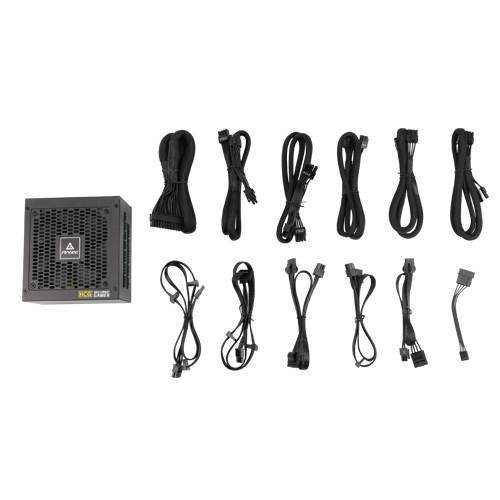

Fully Modular |
| Dimension (W x L x H) |
140(L)*150(W)*86(H) mm |
| Warranty |
10 years |
| Input Voltage |
100-240 VAC ±10% |
| Input Current |
12A-6A |
| Input Frequency Range |
50Hz-60Hz |
| PFC |
Active PFC (>0.9 typical) |
| Power Good Signal |
100-500ms |
| Efficiency |
92% Typically |
| Protection |
OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity |
850W |
| Operation Temperature |
0~40°C |
| Regulatory |
cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR |
| Fan |
120mm FDB Fan |
| Certifications |
80 Plus Gold |

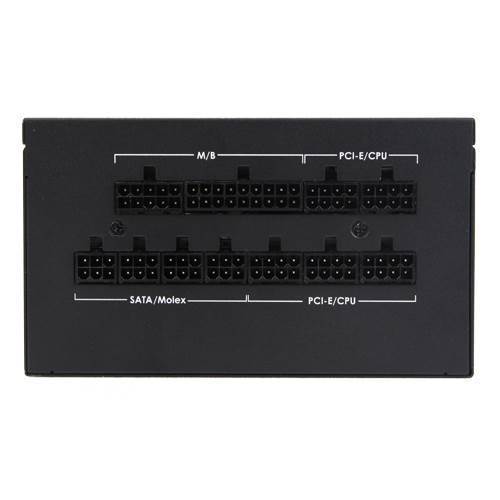

| Connector |
1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V |
| 6 x 8(6+2) Pin PCI-E |
| 10 x SATA |
| 5 x Molex |
| 1 x FDD |
| Net Weight |
2.46Kg |
| Gross Weight |
3.77Kg |
| UPC# |
0-761345-11647-3 HCG850 Gold |
| 0-761345-11645-9 HCG850 Gold AU |
| 0-761345-11644-2 HCG850 Gold EC |
| 0-761345-11643-5 HCG850 Gold GB |
| 0-761345-11642-8 HCG850 Gold JP |
