Description
Features
– 750W Continuous Power: Guaranteed 750W of Continuous Power from Antec
– 80 PLUS Gold certified: Up to 92% efficient to reduce your electricity bill
– AQ7: Antec Quality 7 year warranty and lifetime global 24/7 support
– 120mm Silence: Whisper-quiet high-quality fan with long lifetime

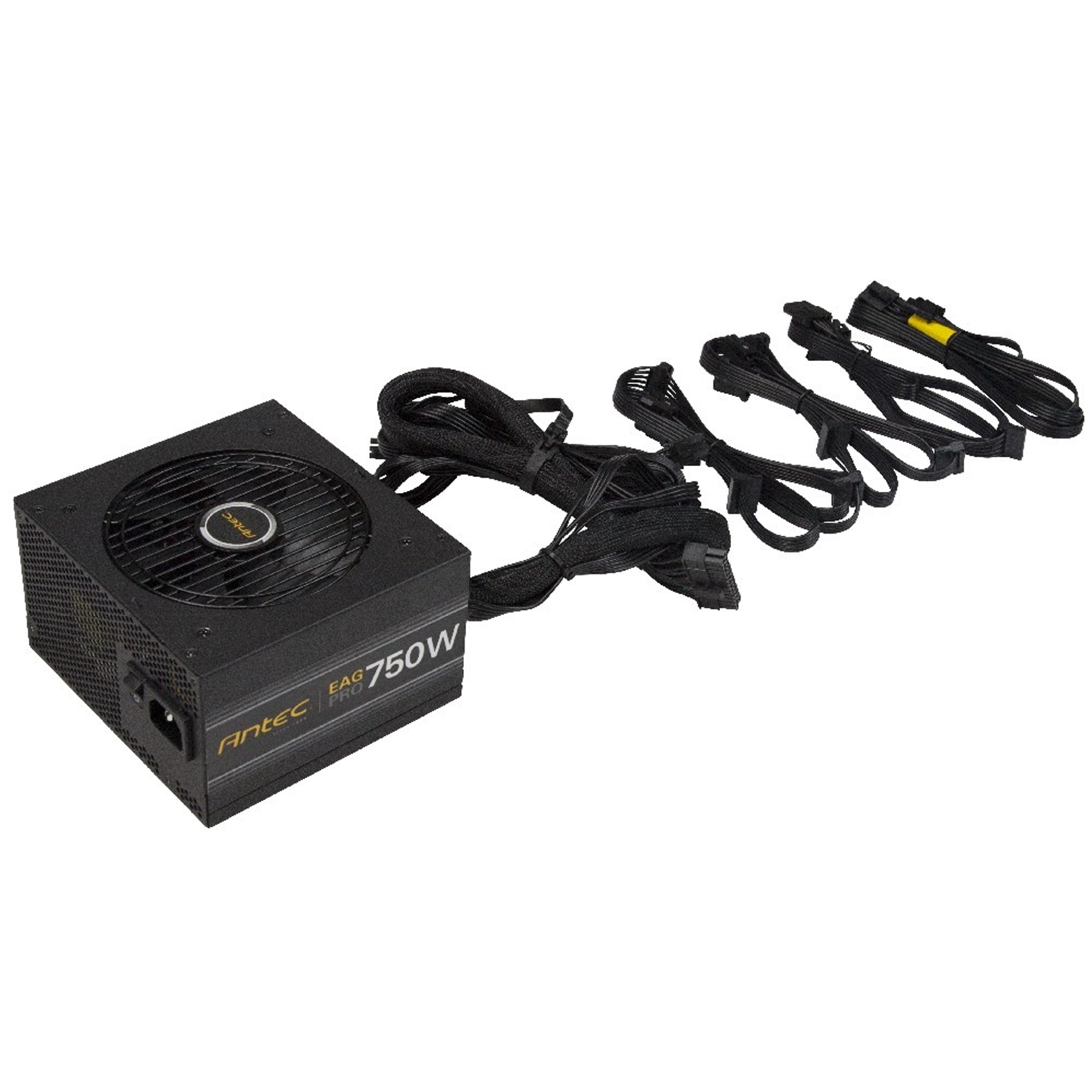

– Semi-Modular cable management: Improves airflow and reduces clutter
– 99% +12V: Output for maximum CPU & GPU support
– Japanese Heavy-Duty Caps: High performance capacitors ensure DC stability and regulation
– 2 x PCI-E connectors for multiple GPU support
– ATX12V 2.4: Engineered according to the newest PSU guideline and compatible with the latest CPU generation
– PhaseWave Design: A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
– ErP Lot6 2013: Compliant to the toughest energy standard available
CircuitShield
Full suite of industrial grade protections:
– Over Current Protection (OCP)
– Over Voltage Protection (OVP)
– Short Circuit Protection (SCP)
– Over Power Protection (OPP)
– Over Temperature Protection (OTP)
– Under Voltage Protection (UVP)
– Surge & Inrush Protection (SIP)
– No Load Operation (NLO)

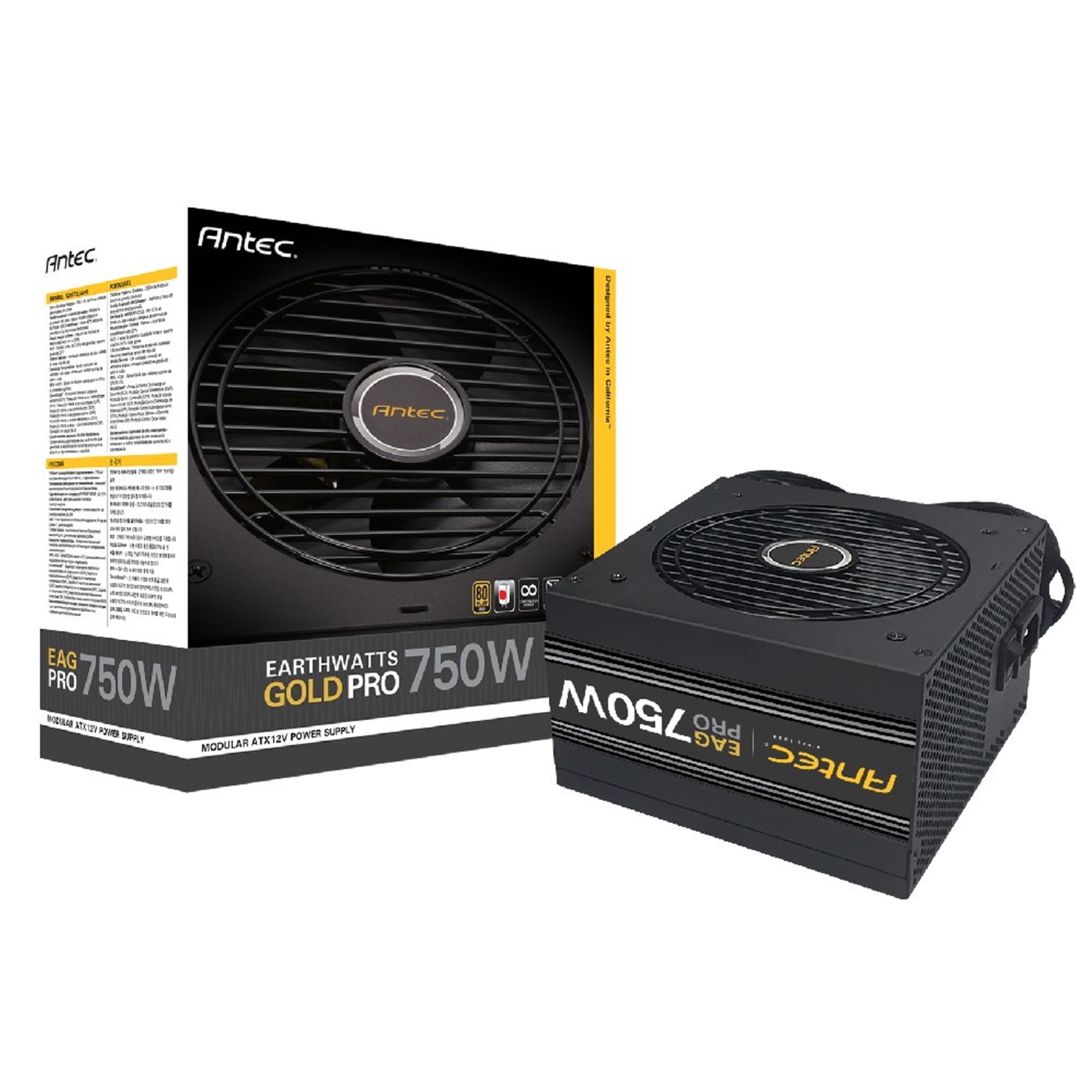

Model
EA750G Pro
Form Factor
ATX 12V 2.4
Modular
Semi-Modular
Input Voltage
100-240 VAC
Input Current
10A-5A
Input Frequency
50Hz-60Hz
PFC
Active PFC (>0.9 typical)
Power Good Signal
100-500ms
Efficiency
92% Typically
Wattage
750W
Operation
0-40�C
Cooling
120mm Silence Fan
Certifications
80 PLUS Gold
Connections
1 x MB 24 (20+4) pin
2 x 8 (4+4) pin EPS 12V
4 x 8 (6+2) pin PCI-E
8 x SATA
3 x Molex
Dimensions ( L x W x H )
140 x 150 x 86 mm
Weight
Net: 2.24 kg
Gross: 3.22 kg
