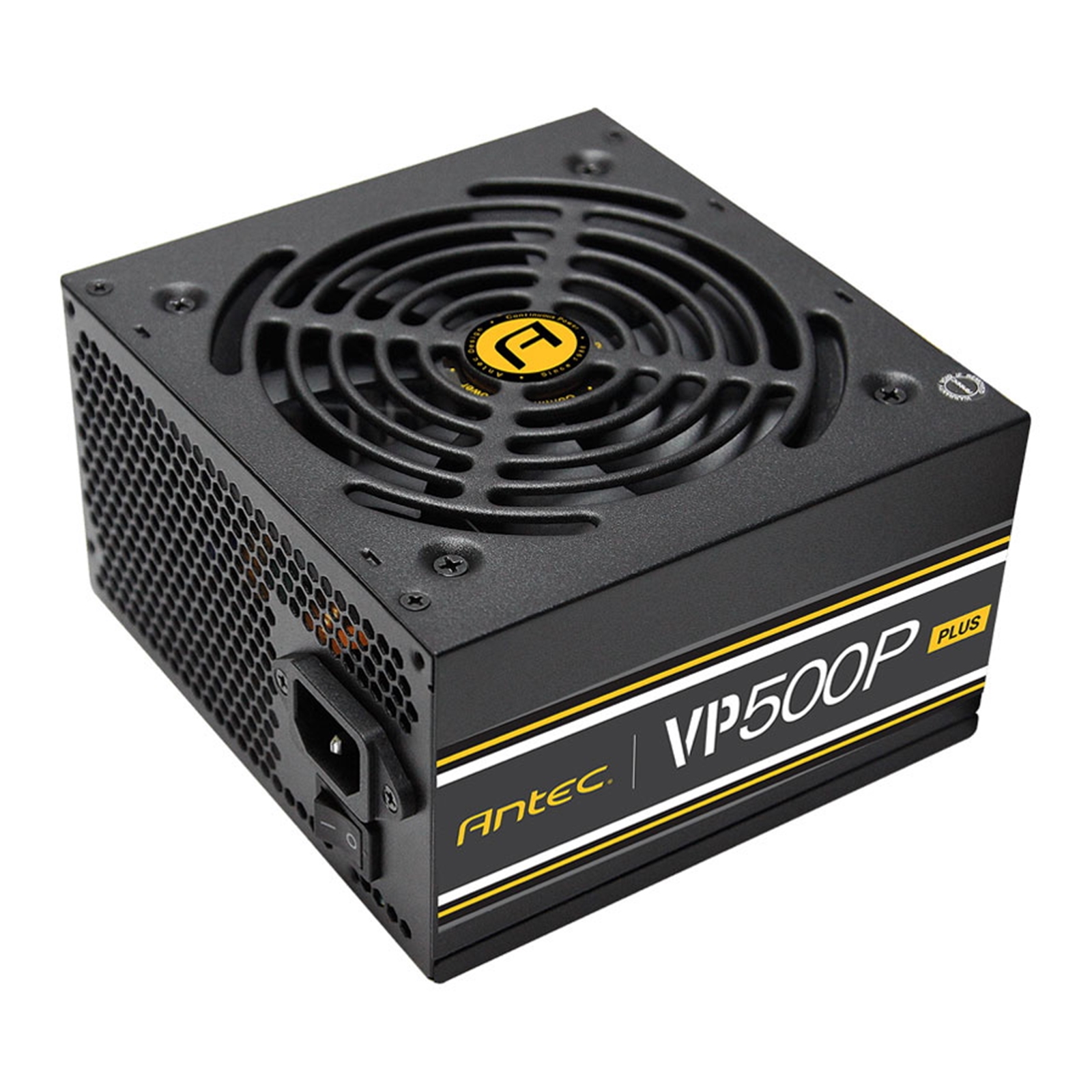

The new generation of VP500P PLUS is crafted for quality, performance and incredible value.
This entry-level solution is rated from 500W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS 230V Standard certified.
Delivering up to 85% efficiency
the VP P PLUS series utilizes active PFC, Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
3 Year Warranty
We stand by the quality and safety of the VP P PLUS Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
120mm Silent Fan
The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.
Single 12V Rail Design
VP P PLUS series is equipped with strong single +12V rail. The higher-ranking performance with high load capabilities ensures maximum CPU & GPU compatibility.
– Continuous Power: Guaranteed 500W Continuous Power from Antec
– 80 PLUS 230V Standard Certified: Up to 85% efficient, to reduce your electricity bill
– AQ3: Antec Quality 3 year warranty
– 120mm Silent Fan
– Thermal Manager: An advanced low voltage fan control for optimal heat & noise management
– CircuitShield: Full suite of industrial grade protections (UVP/OVP/SCP/OPP/NLO)
– Multi PCI-E: 2 PCI-E connectors for multiple GPU support
200-240 VAC +-10%
Input Frequency Range
Active PFC (>0.9 typical)
Power Good Signal
120mm Silent Fan
80 PLUS White
1 x MB 24(20+4) Pin
1 x 8(4+4) Pin EPS 12V
2 x 8(6+2) Pin PCI-E
7 x SATA
2 x Molex
1 x FDD
Net: 1.71 Kgs
Gross: 2.10 Kgs
Dimension ( W x L x H )
140 x 150 x 86 mm
