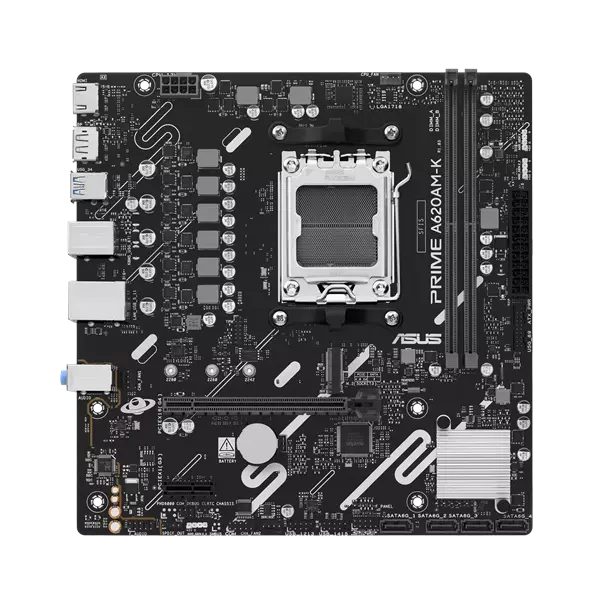

ASUS PRIME A620AM-K AMD AM5 Micro-ATX Motherboard

The ASUS PRIME A620AM-K is a reliable and compact motherboard designed for modern AMD desktop systems. Based on the AMD A620A chipset, it supports AMD Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors installed in the AM5 socket. Its micro-ATX format makes it suitable for compact computers while retaining the essential features required for home, office and gaming PC builds.

Support for AMD Ryzen Processors

The AM5 platform provides compatibility with a wide range of AMD Ryzen processors. The motherboard is designed to support Ryzen 7000, 8000 and 9000 Series CPUs, allowing users to build a modern and upgradeable desktop system around AMD’s current processor platform.

Fast DDR5 Memory

The ASUS PRIME A620AM-K features two DDR5 DIMM slots with dual-channel support and a maximum supported capacity of up to 128 GB. DDR5 memory provides increased bandwidth and improved efficiency compared with older memory standards, making the motherboard suitable for multitasking, productivity software, gaming and everyday use.

Flexible Storage Options

The motherboard includes one M.2 slot supporting PCIe 4.0 drives in the 2280 format. This allows the installation of a fast NVMe SSD for quick system startup and application loading. Four SATA III connectors provide additional compatibility with SATA SSDs and hard disk drives. RAID 0, 1, 5 and 10 configurations are supported for compatible storage setups.

Expansion and Connectivity

The main PCIe 4.0 x16 slot is suitable for installing a dedicated graphics card. An additional PCIe 3.0 x1 slot allows the system to be expanded with compatible sound, network or other peripheral cards.

For network connectivity, the motherboard provides a Gigabit Ethernet port. It also includes HDMI and DisplayPort outputs for compatible processors with integrated graphics. Wireless networking is not integrated into this model.

Convenient System-Building Features

The ASUS PRIME A620AM-K includes connectors for CPU and chassis fans, RGB lighting, front-panel audio, TPM, USB 2.0 and additional system components. Its UEFI AMI BIOS provides access to system configuration and hardware-management settings. The board supports Windows 10 64-bit and Windows 11 operating systems.
