Description

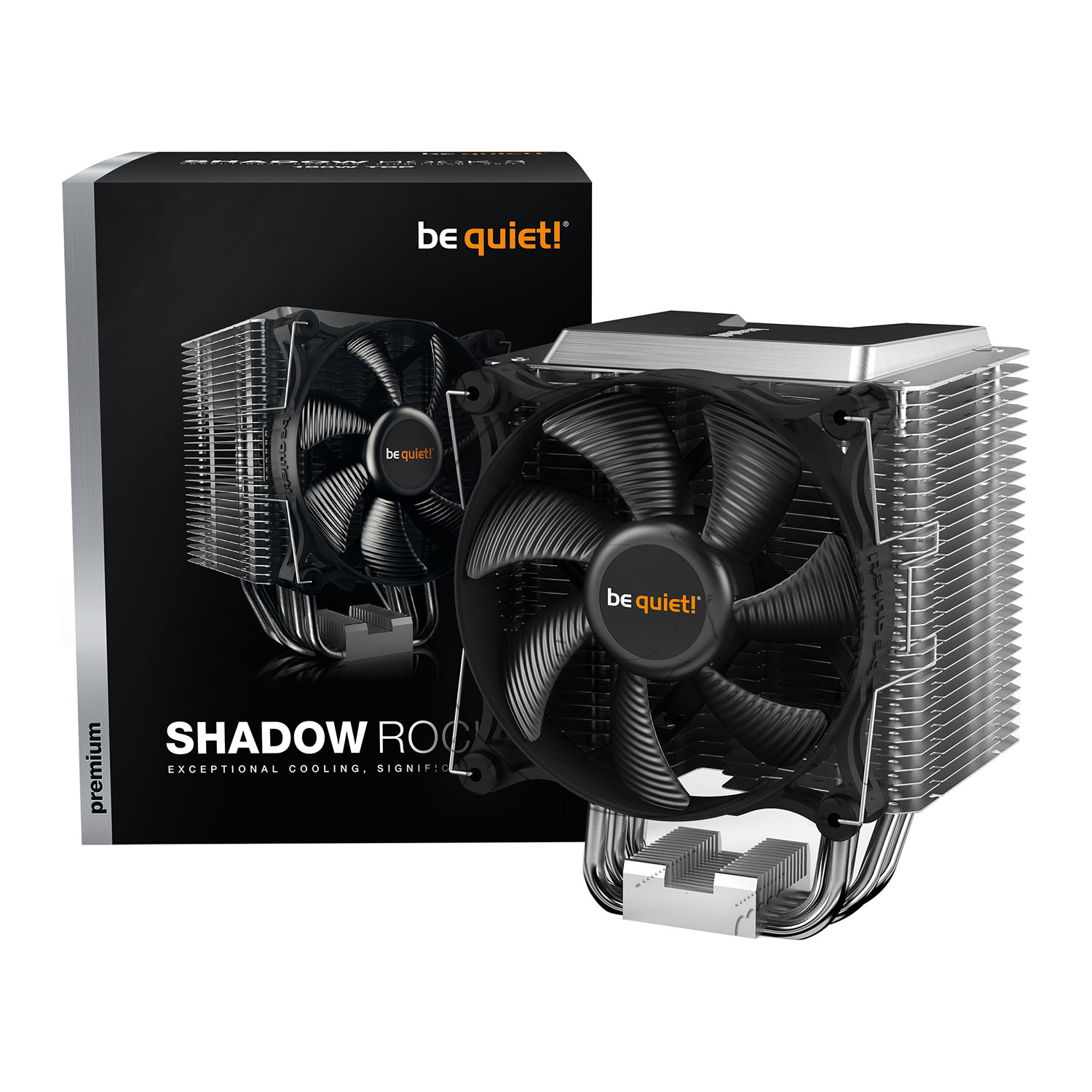

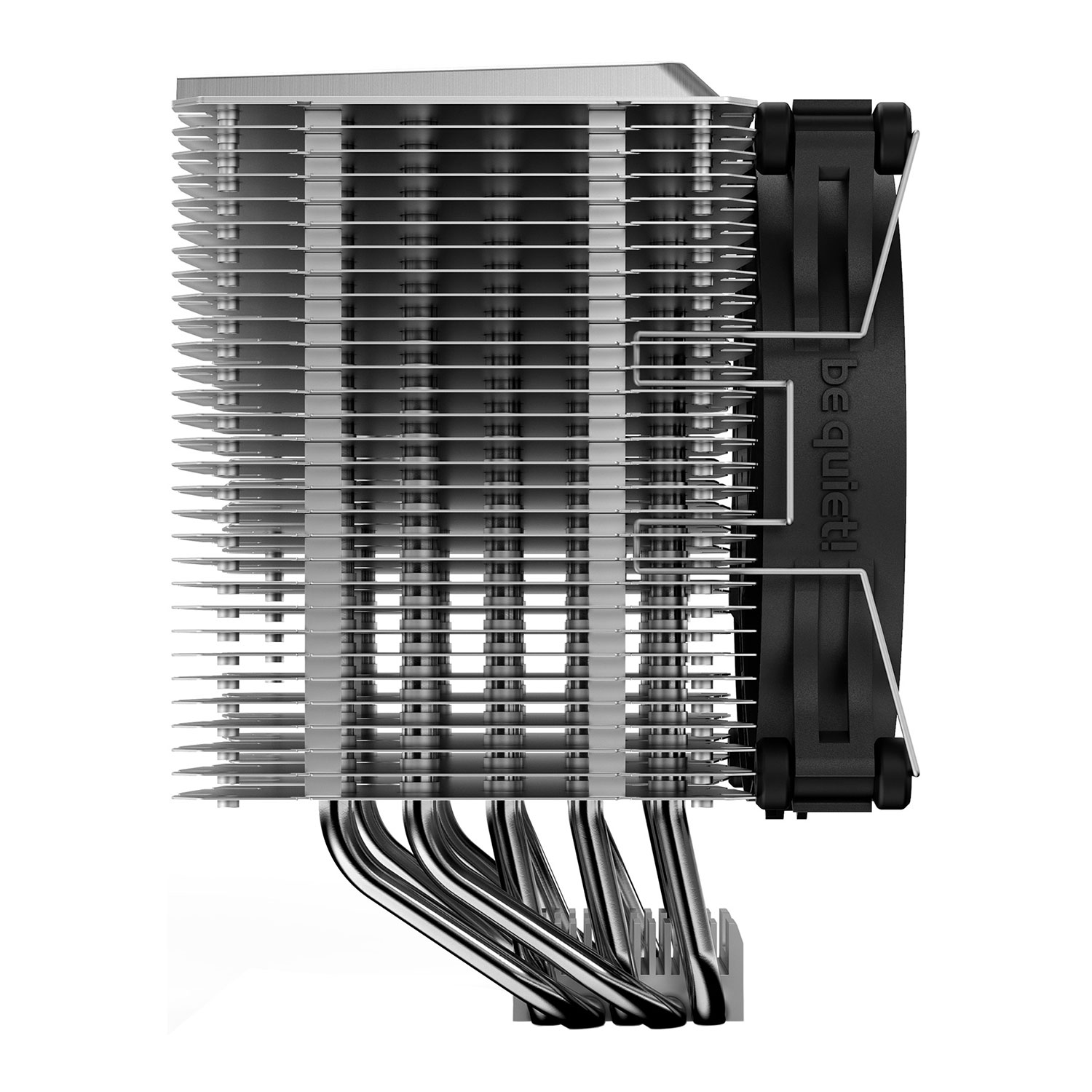

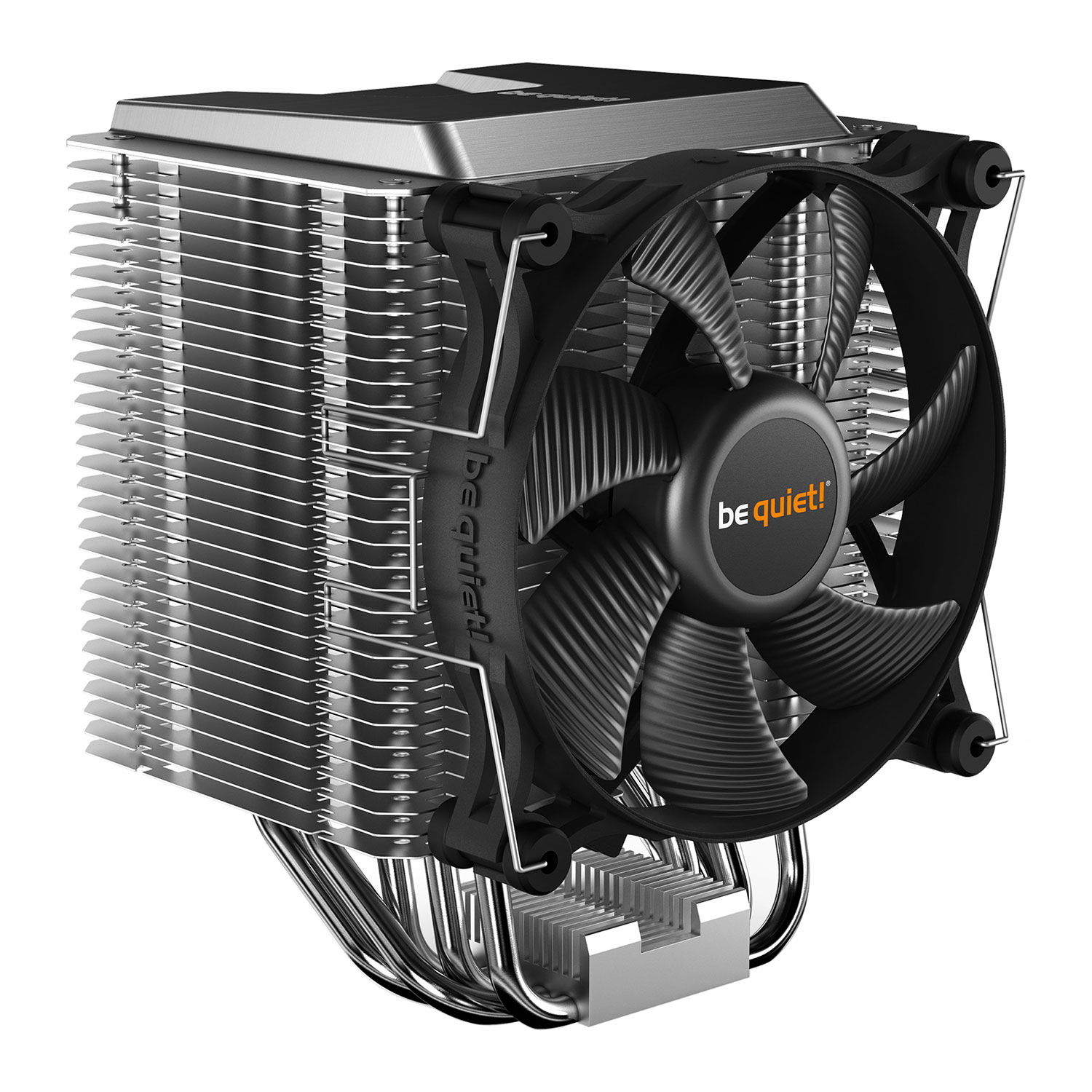

Product Description – Be Quiet! BK004 Shadow Rock 3
Type – Heatsink and Fan
AMD/Intel – Combo
Compatibility:
– Intel: 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
– AMD: AM4 / AM3(+)
– AMD: AM4 / AM3(+)
TDP – 190 W
Fan Connector(s) – 4-pin
Colour – Black with bi-color surface, brushed aluminum top cover
Material:
– Fins: Aluminum
– Base: Aluminum / Copper
– CPU contact surface: Heat pipe direct touch
– Surface treatment: Aluminum
– Base: Aluminum / Copper
– CPU contact surface: Heat pipe direct touch
– Surface treatment: Aluminum
Weight – 0.71 kg
Fan Dimensions – 120 x 120 x 25 mm
Dimensions:
– (LxWxH) 121 x 130 x 163 mm (without mounting material)
– Heatsink: (LxWxH) 96 x 130 x 163 mm
– Heatsink: (LxWxH) 96 x 130 x 163 mm
Fan Controller – PWM
Rotation Speed – 1,600 RPM (@100% PWM /12V)
Fan Bearing – Rifle Bearing
Noise level – 50/75/100% RPM: 11.5 / 17.5 / 24.4 dB(A)
Power:
– Rated Voltage (V): 12
– Input current (A): 0.20
– Input power (W): 2.4
– Input current (A): 0.20
– Input power (W): 2.4
