Description
| Brand | BIOSTAR |
|---|---|

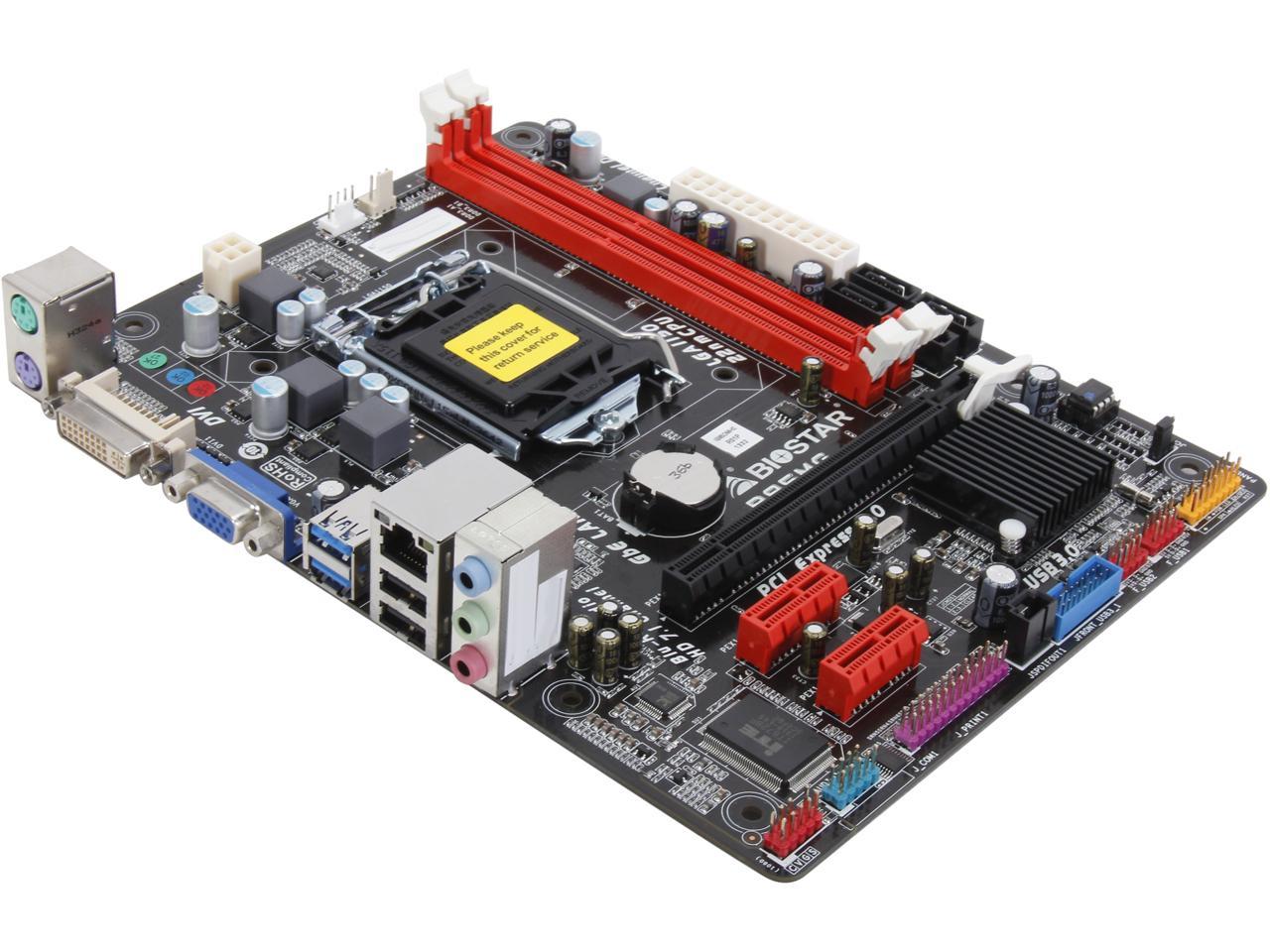

| Model | B85MG Ver. 6.x |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) |
| Chipset | Intel B85 |
|---|
| Onboard Video Chipset | By CPU model Supports DX11.1 Supports HDCP |
|---|
| Number of Memory Slots | 2×240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333/ 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI-E 2.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2Â | 1 x PS/2 Mouse 1 x PS/2 Keyboard |
|---|---|
| Video Ports | 1 x DVI Connector 1 x VGA Port |
| RJ45 | 1 x RJ45 |
| USB 3.0Â | 2 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 3.0 Header 2 x USB 2.0 Headers |
|---|---|
| Other Connectors | 1 x Printer Header 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.90″ x 6.85″ |
