Description

PLEASE NOTE THIS CARD IS AN LHR CARD AND NOT SUITABLE FOR MINING PURPOSES

GPU Engine Specs
CUDA Cores
8704
Boost Clock (MHz)
1770

Memory Specs
Memory Clock
19Gbps
Standard Memory Config
10GB
Memory Interface
GDDR6X
Memory Interface Width
320-bit
Memory Bandwidth (GB/sec)
760

Feature Support
Real-Time Ray Tracing
Yes
NVIDIA GeForce Experience
Yes
NVIDIA Ansel
Yes
NVIDIA Highlights
Yes
NVIDIA G-SYNC Ready
Yes
Game Ready Drivers
Yes
Microsoft DirectX
12 Ultimate
Vulkan API
Yes
OpenGL
4.6
Bus Support
PCI-E 4.0 X16
OS Certification
Windows 10, Linux, FreeBSDx86

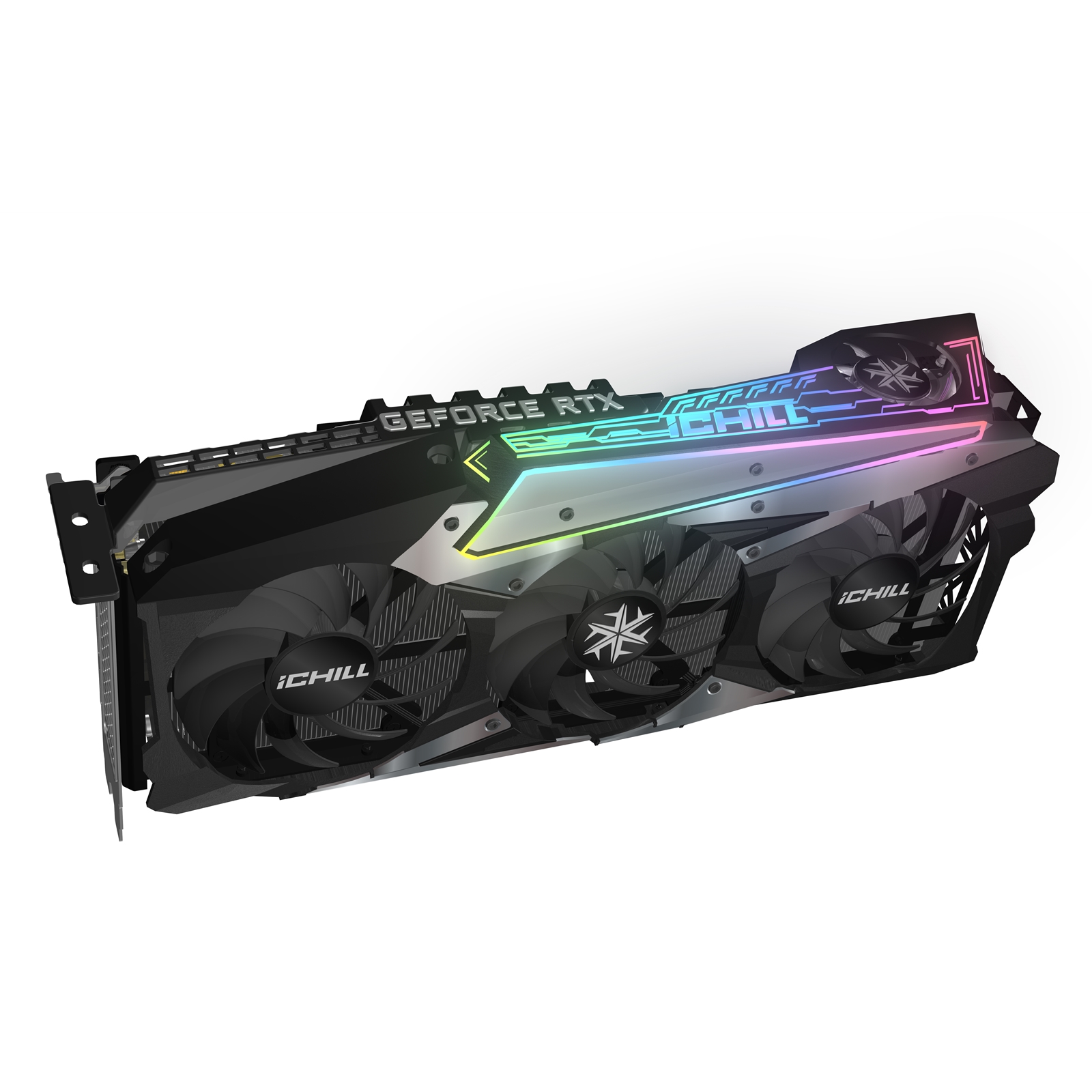

RGB
Programmable RGB: Aura Sync, Mystic Light, RGB Fusion
LHR
This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).

Display Support
Multi Monitor
Yes
Maximum Digital Resolution
7680 x 4320
HDCP
2.3

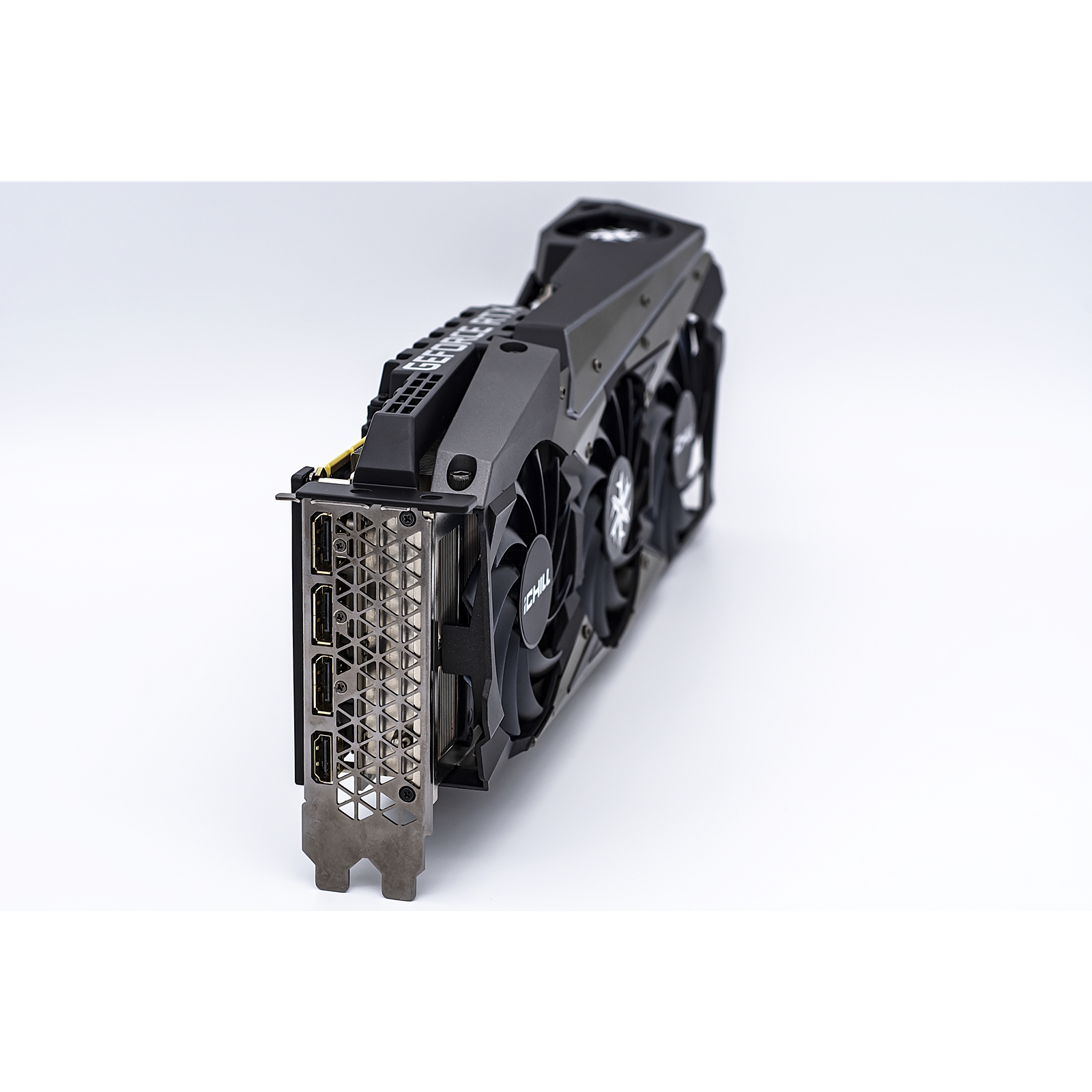

Standard Display Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Internal Audio Input for HDMI
Internal

Standard Graphics Card Dimensions
Length
300mm
Height
135mm
Width
3-slot

Thermal and Power Spec
Minimum System Power Requirement (W)
750
Supplementary Power Connectors
8+8-pin

Accessories
Installation Guide
Power Guide
