The Enclave Series from Kolink represents a new series of high-performance power supplies with 80 PLUS Gold certification. The premium quality components, advance design and powerful 12V single-rail ensure robust and reliable power delivery as well as precise voltage regulation. The premium quality power supply is rounded off by the welcome addition of fully modular cable management as well as a whisper-quiet 120 mm fan.
THE KOLINK ENCLAVE 80 PLUS GOLD PSU RATED FOR 600 WATTS AT A GLANCE:
- 600 Watt PSU with powerful 48A single rail
- High efficiency thanks to 80 PLUS Gold certification
- Quiet 120 mm fan

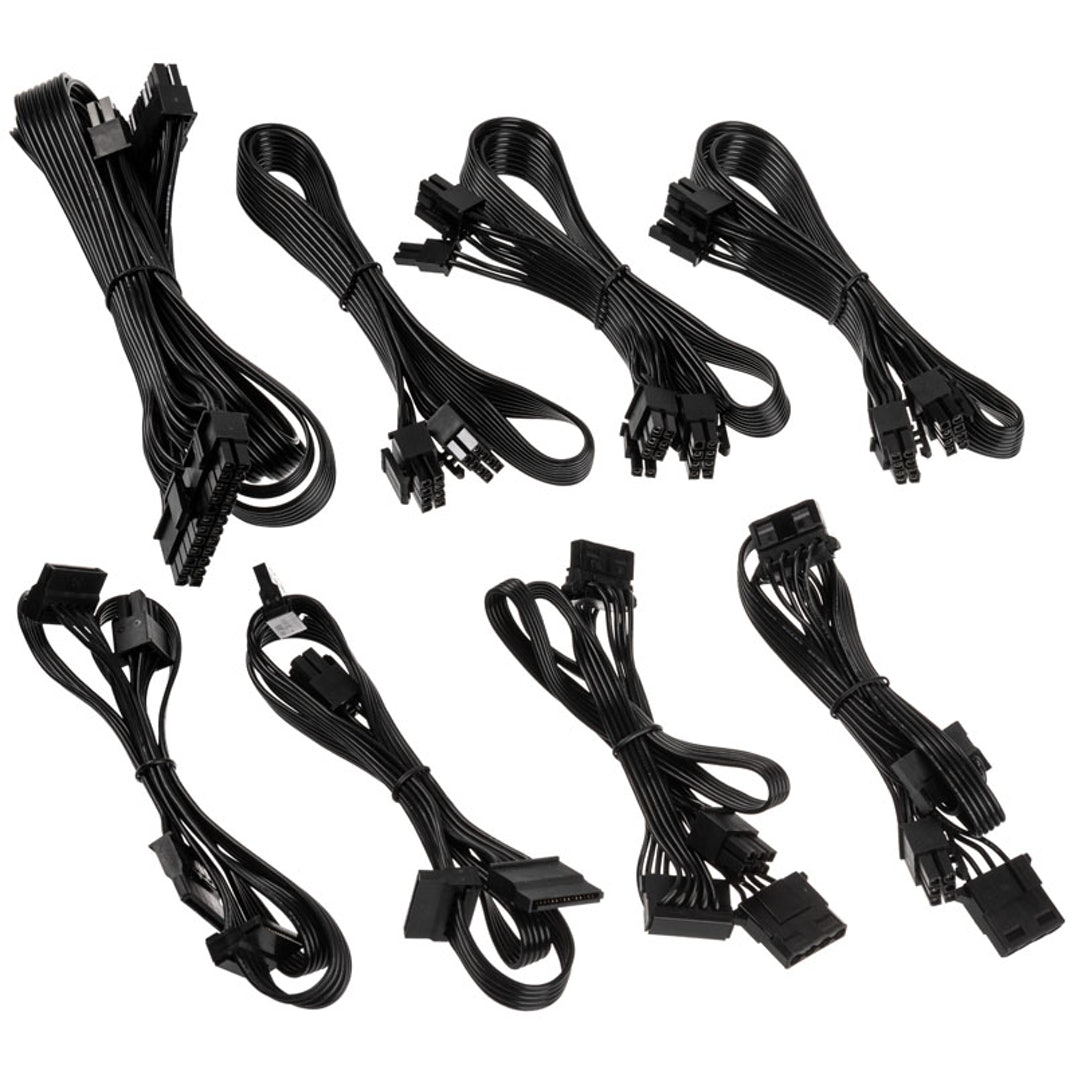

- Fully modular cable management with flat cables
- Four 6+2-Pin PCIe connectors for graphics cards
- Eight SATA- and four Molex connectors
THE KOLINK ENCLAVE 80 PLUS GOLD PSU RATED AT 600 WATTS IN DETAIL
The advanced design and the use of high-quality components mean that Kolink has been able to produce an efficient and high-performance power supply in the form of the Enclave 80 PLUS Gold 600W. To this end, the manufacturer has opted for LLC transformers and DC-DC technology alongside independent voltage regulation. This combination also provides benefits to the unit’s operating efficiency as well as the precision with which voltages are regulated, particularly when it comes to asymmetric loads.
As a result, the Enclave is capable of outputting nearly its entire rated power delivery through the +12 Volt rail if necessary. This can be up to 48A and means that all your high-performance components are kept well-supplied with all the power they need. The high operating effectiveness means that it meets the criteria for 80 PLUS Gold certification as well as an average efficiency of 92 percent when used on a European 230 Volt network.

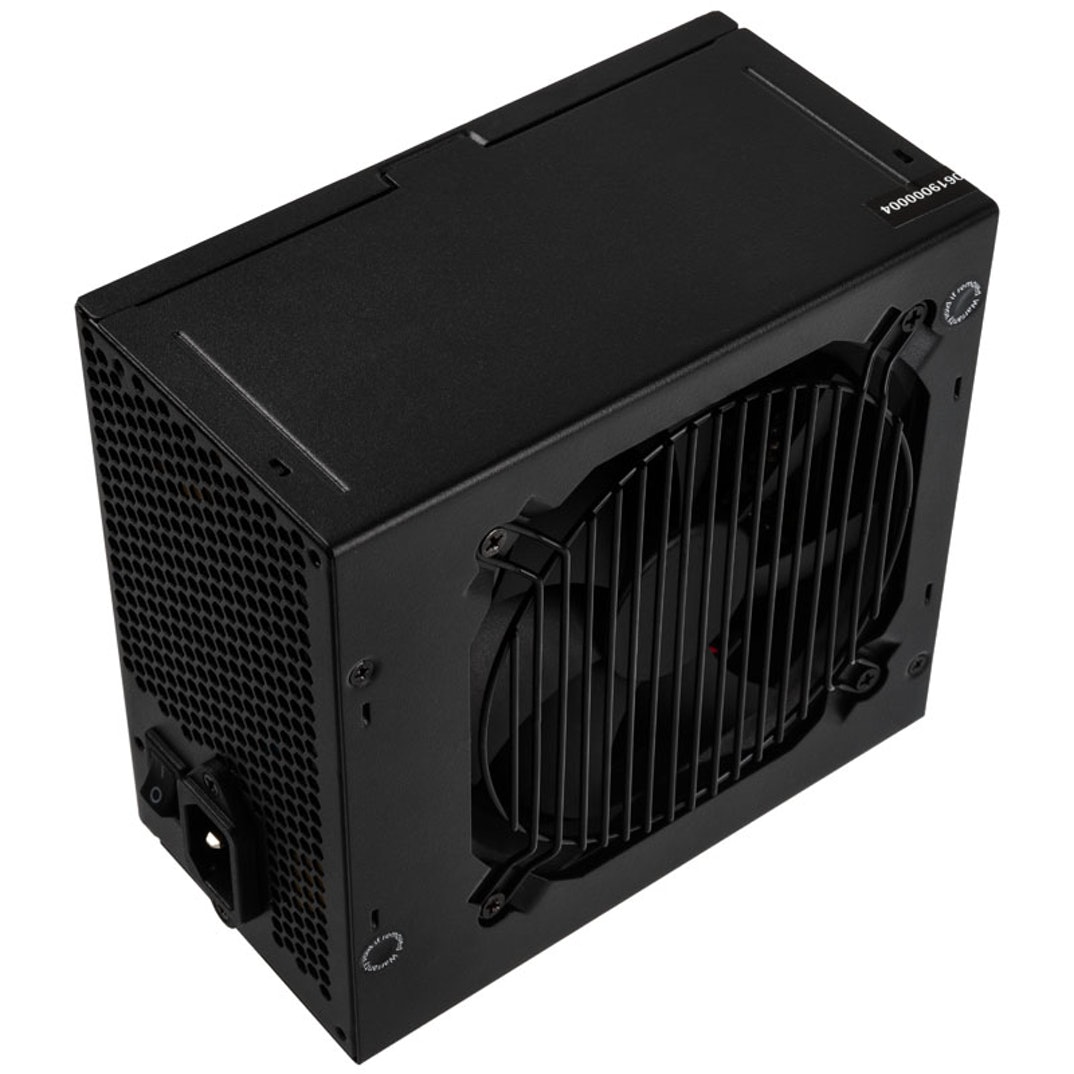

In terms of cooling, the units use a slow-spinning 120 mm fan with ultra-durable rifle bearings. Apart from the impressive performance specifications, the Kolink Enclave 600W isn’t short of connectivity options either: in addition to a 20+4-Pin ATX- and a 4+4-Pin 12V EPS connector, there are also four 6+2-Pin PCIe connectors available to supply graphics cards with power. Additional components are powered by means of eight SATA- and four Molex connectors.
Note: For environmental reasons, the manufacturer does not supply a wall outlet power cable with the unit.
- Dimensions: 150 x 86 x 160 mm (W x H x D)
- Fan: 120 mm (automatic regulation, rifle-bearing fan)
- Colour: Black (PSU, fan)
- Efficiency: min 90/87/87 percent at 50/20/100 percent load on European 230 Volt network. Meets requirements for 80 PLUS Gold.
- Active PFC
- Form factor: ATX 12V V2.31

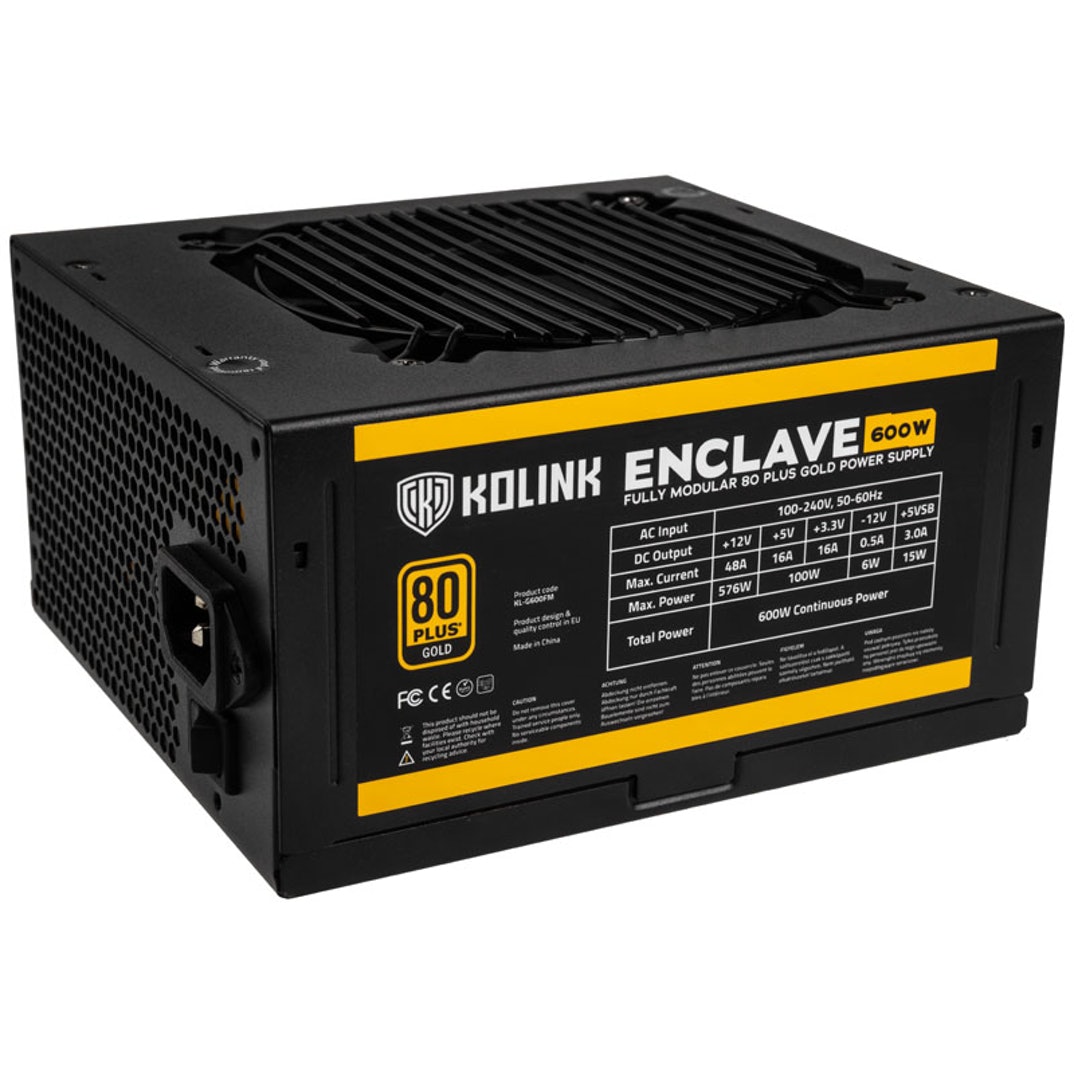

- Output: 600 W
+3,3V: 16 A
+5V: 16 A
+3,3V and +5V combined: 100 W
+12V: 576 W / 48 A
-12V: 6 W / 0,5 A
+5Vsb: 15 W / 3 A

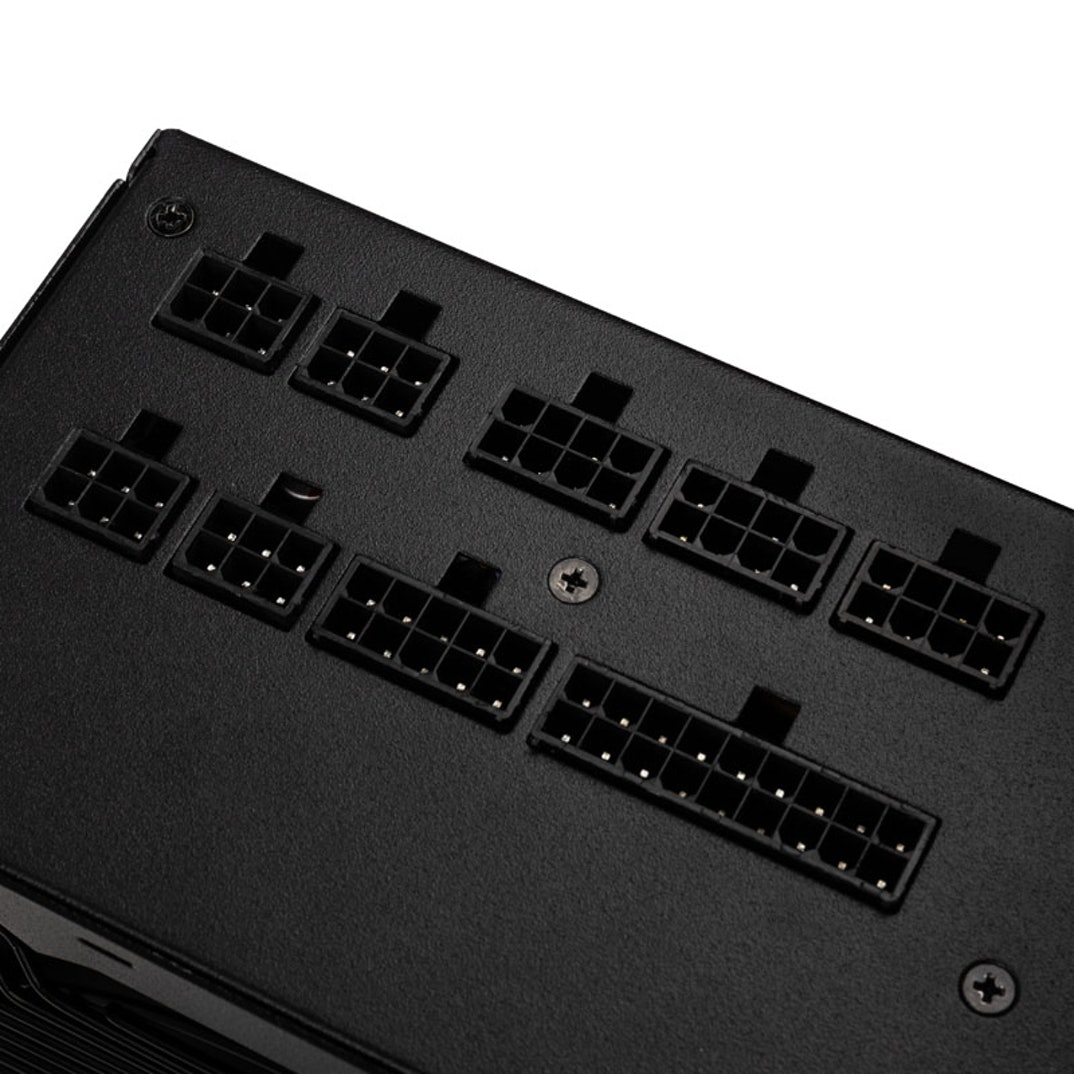

- Connectors (removable):
1x 20+4-Pin ATX12V/EPS12V
1x 4+4-Pin ATX12V/EPS12V
4x 6+2-Pin PCIe
4x 4-Pin Molex
OVP/UVP (protection against over- and undervoltage)
SCP (short circuit)
OCP (over-current protection on +12, +3,3 and +5 Volt rails)
- Manufacturer’s guarantee: 3 Years
