Extraordinary performance. Game-changing experiences. Perfectly tuned. Game Ready with GeForce GTX 10-Series graphics cards.
Experience incredible performance in high-definition games, powered by NVIDIA Pascal – the most advanced GPU architecture ever created.
Fast, easy access to NVIDIA Game Ready drivers lets every gamer turn their PC into a true gaming rig and take on the latest titles in their full glory.

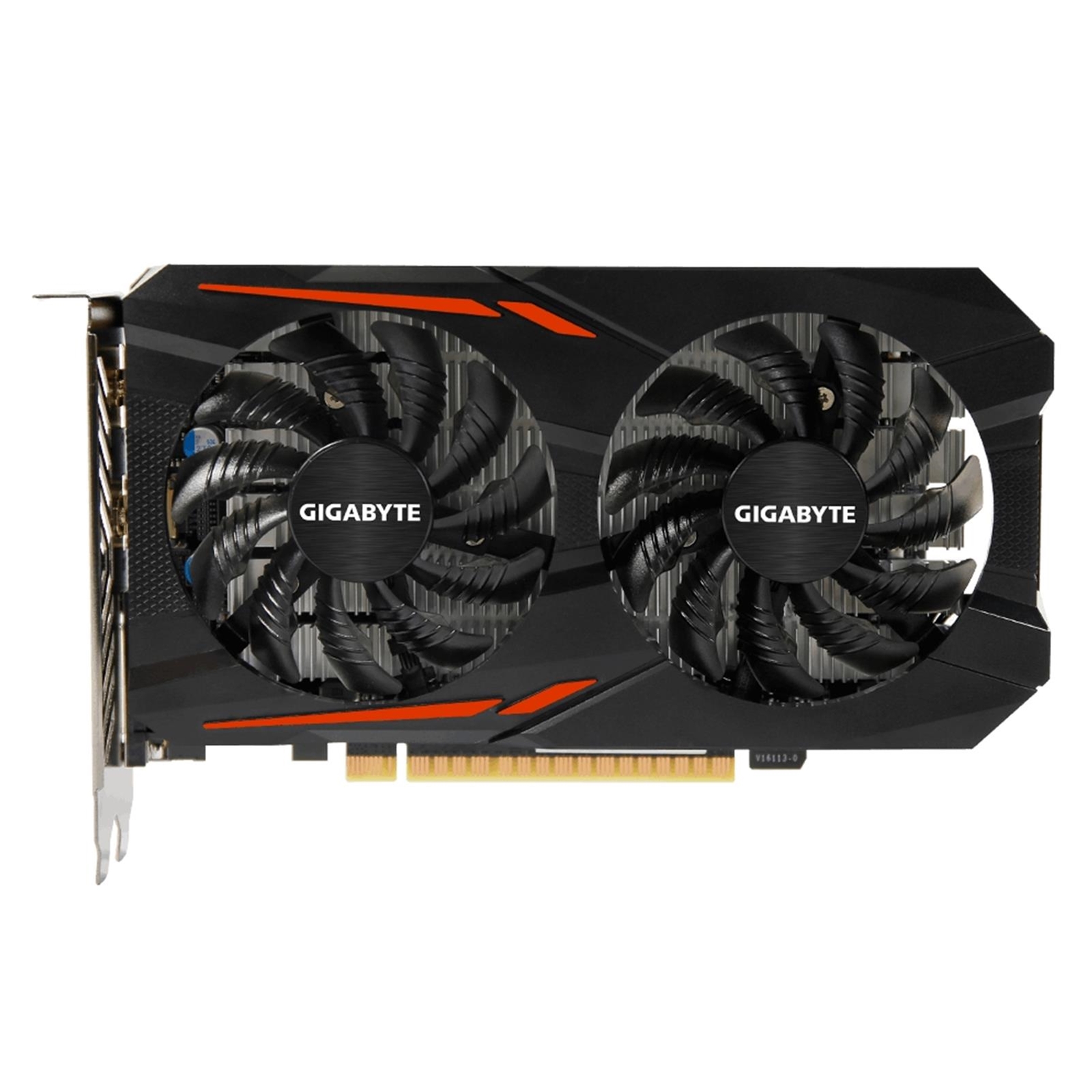

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 80mm unique blade fans and semi-passive 3D active fan together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
WINDFORCE 2X Cooling System-Fans
80mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Low Power Loss
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.

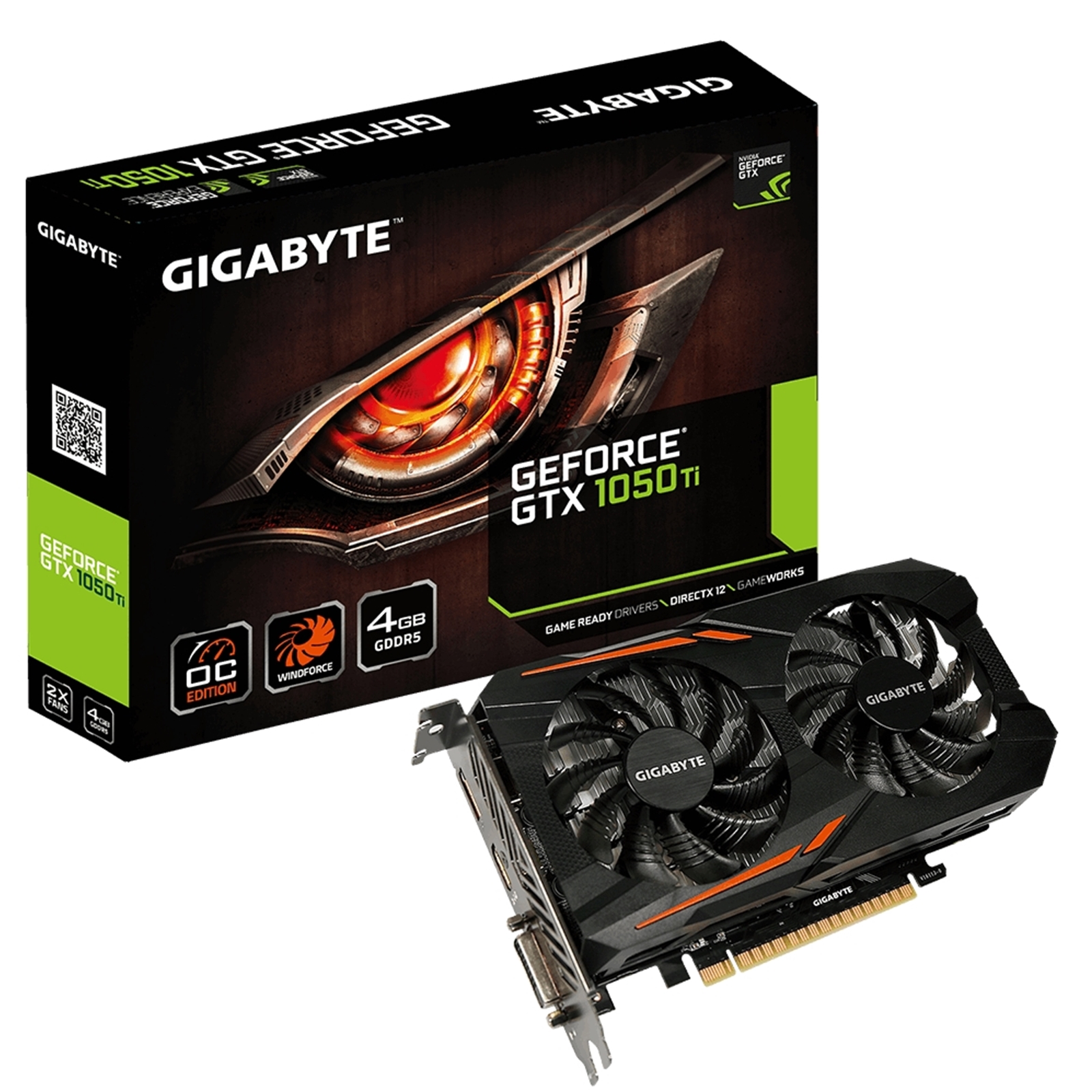

GeForce GTX 1050 Ti
PCI-E 3.0 x 16
Graphics Base Clock
1341MHz in OC Mode
1316MHz in Gaming Mode
Graphics Boost Clock
1455MHz in OC Mode
1430MHz in Gaming Mode

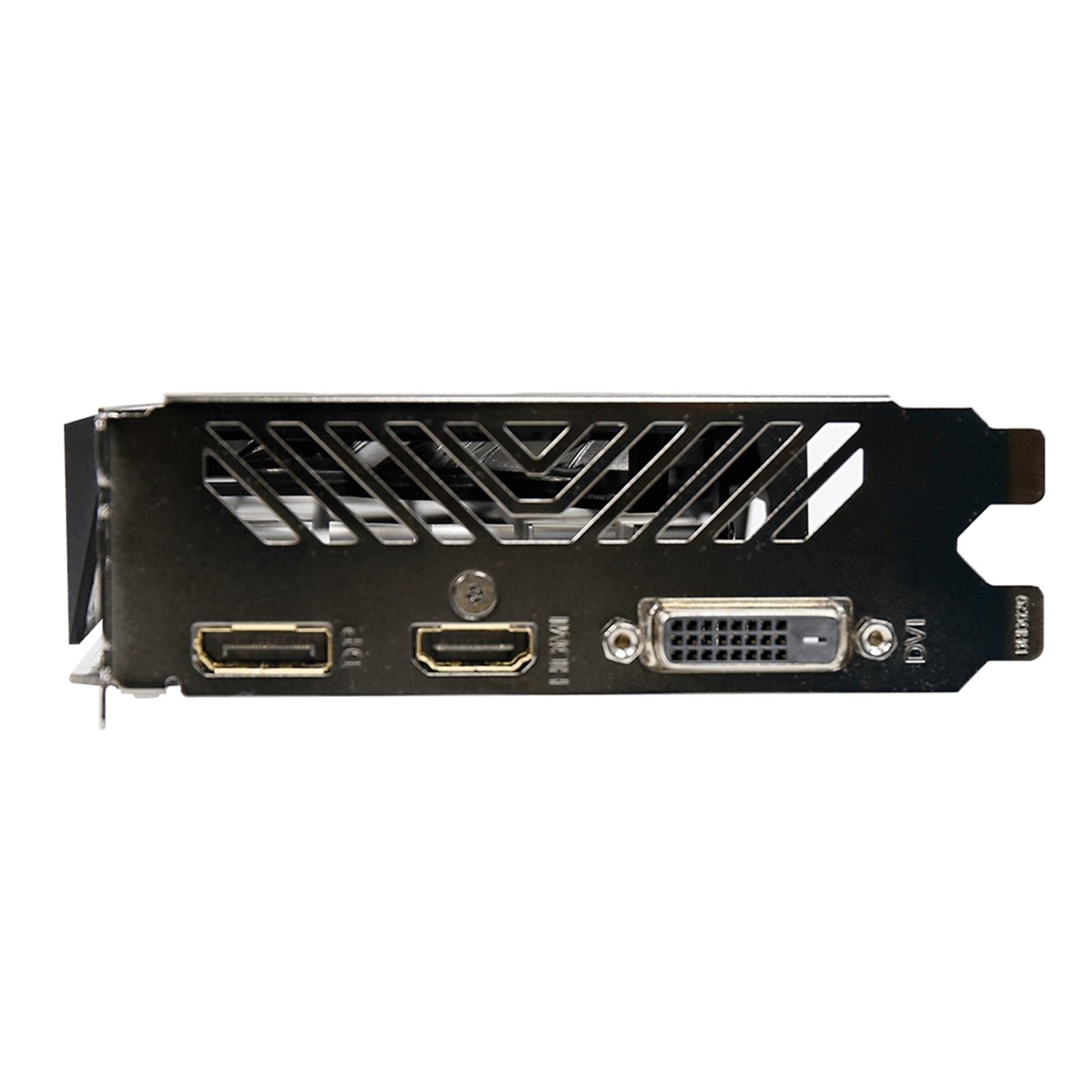

1 x Dual-link DVI-D
1 x HDMI-2.0b (Max Resolution: 4096×2160 @60Hz)
1 x Display Port-1.4 (Max Resolution: 7680×4320 @60Hz)
WINDFORCE 2X Cooling System with Unique Blade Fan Design
Minimum Power Requirements
Dimensions (W x H x D)
111 x 36 x 191
